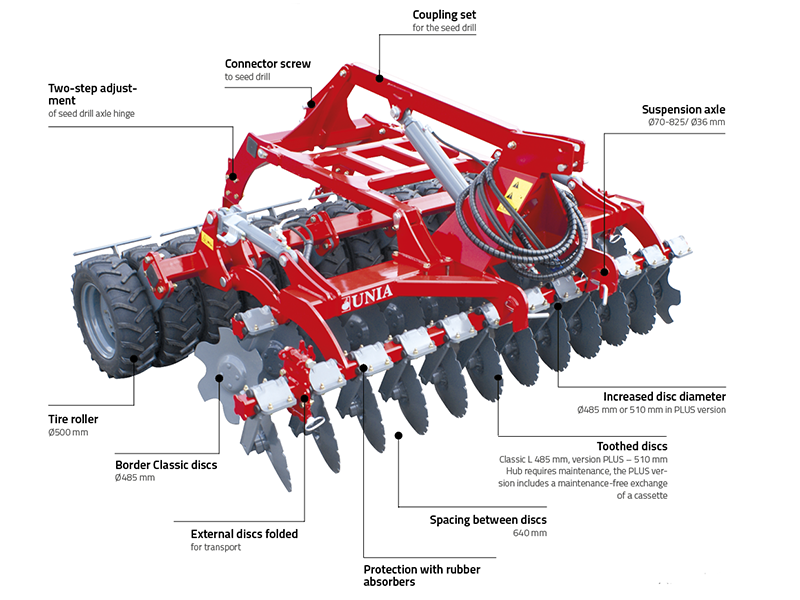

ARES L

• suspension axles:
  • ø60-825/ø28mm (versions 2,5÷3)
  • ø60-825/ø36mm (versions 3,5÷6)
• 2 rows of ø510/4 mm CLASSIC toothed discs, protected by ø35×160mm shock absorbers
• ø500 mm pipe roller
• ø600 mm pipe roller (ARES L 4,5 / 6,0)
• mechanical adjustment of working depth
• rigid frame

ARES L:

• disc spacing: 64 cm
• disc diameter 510 mm

ARES L PLUS:

• replaceable maintenance-free hub
• disc diameter 560 mm

• hydraulic front board (only w. DRIVE system or in semi-mounted version)
• DRIVE system w. 1 800 mm long drawbar
• surcharge for a set of AGRESSIVE discs ø510/4 mm
• chassis w. wheels 10.0/80-12 and 1 800 mm long drawbar
• chassis w. wheels 480/45-17 and 2 200 mm long drawbar and air brake
• surcharge for a set of side deflectors
• seeder mounting kit (internal deflector, supports, coupling screw)
• HYDROPAK – seeder coupler
• hydraulic adjustment of the working depth (4 points adjustable)
• surcharge for suspension axle, ø60-825/ø36mm (version 2.5÷3)
• surcharge for suspension axle, ø60-965/ø36mm (version 3.5÷6)
• surcharge for polyurethane shock absorber (one set per disc)
• warning plates kit
• warning plates kit with lamps
• possibility of mounting the ETA seeder
